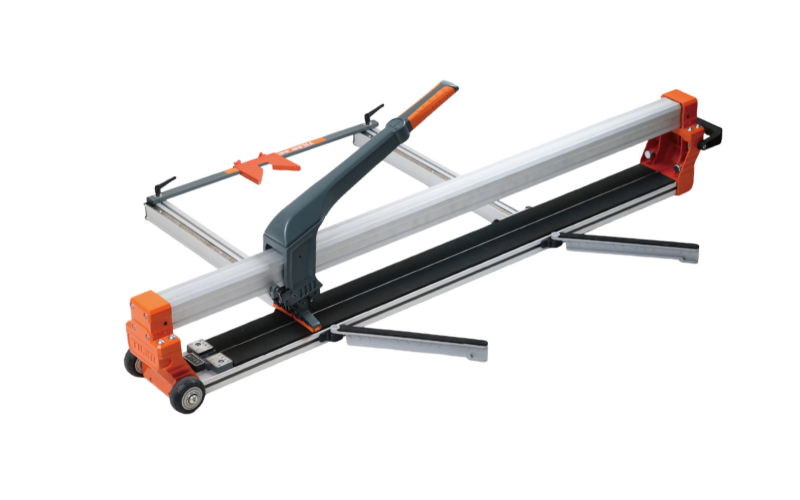

TILER 8102X-01 Professional Manual Tile Cutter High-Precision Tool for Contractors | OEM/ODM, Wholesale, and Distribution for Resellers

Share
Categories	Manual Tile Cutters
Brand	TILER tile cutting and laying tools distrubutor
Model	8102X-01
Base Material	Aluminum Alloy
Maximum Cutting Length	1800mm
Cutting Thickness Range	4mm to 18mm
Separator Power	1200kgs
Accuracy	within 1.0mm
Blade Material	Tungsten carbide
Laser guide	Yes
Guide Rail Type	Linear Guide Rail
Cutting Angle	Straight cut + 45° miter cut
Download

Contact Now

Add to Wishlist

Detail Information

◢ SPECIFICATION

ART.	MAX.CUTTING LENGTH (mm)	MAX.DIAGONAL CUTTING LENGTH(mm)	CUTTING THICKNESS (mm)	BREAKING POWER (kg)	SIZE OF CUTTING WHEEL(mm)	QTY/CTN	WEIGHT (kg)	LxWxH (cm)	LASER (Y/N)
8102X-01-800	800	565	4-18	1200	2266	1	/	113x18.5x31	Y
8102X-01-900	900	635	4-18	1200	2266	1	/	123x18.5x31	Y
8102X-01-1200	1200	850	4-18	1200	2266	1	/	153x18.5x31	Y
8102X-01-1600	1600	1130	4-18	1200	2266	1	/	193x18.5x31	Y
8102X-01-1800	1800	1270	4-18	1200	2266	1	/	213x18.5x31	Y

◢DESCRIPTION

TILER 8102X-01 Professional Manual Tile Cutter High-Precision Tool for Contractors | OEM/ODM, Wholesale, and Distribution for Resellers

▪ Self‑Resetting Handle – No manual reset after each cut; boosts continuous cutting efficiency.

▪ Linear Guide Rail System – Smooth, stable, and deviation‑free movement for perfectly straight cuts.

▪ Impact‑Resistant Frame Slot – Locks precision against transportation shocks and job‑site impacts.

▪ Removable Support Frame – Compact, portable design for easy transport between job sites.

▪ ≤1mm Cutting Precision – Professional‑grade accuracy that meets strict tile installation standards.

◢FAQ

How does the self-resetting handle improve cutting efficiency?

Traditional cutters require you to manually pull the handle back after each cut. The handle automatically returns to its starting position, so you can immediately move to the next tile. This saves valuable time during high‑volume jobs like bathroom walls or large floor areas.

Why is the linear guide rail system important for cutting straightness?

The guide rail determines how straight your cuts will be. The 8102X-01 uses a precision linear guide rail that ensures smooth, resistance‑even movement without skipping or deviating. This is critical for long, continuous cuts and 45° miter cuts, giving you consistent results tile after tile.

What does the impact‑resistant frame slot design do?

It locks the structural stability of the cutter. Even if the tool is bumped during transport, dropped, or shaken on a job site, the reinforced slot keeps the frame and guide rail perfectly aligned. This prevents precision drift, so you don’t have to constantly recalibrate or worry about damage from daily impacts.

Why would I need a removable support frame?

Tile cutters often need to be moved from warehouse to job site, carried upstairs, or transported between projects. The removable support frame makes the 8102X-01 much more compact and portable, reducing weight and bulk. It’s a practical feature for installers who work on multiple sites.

What does “≤1mm cutting precision” really mean for my work?

It means your tile cuts will be accurate to within 1mm under normal working conditions. This level of precision meets professional acceptance standards for high‑end residential projects, luxury renovations, and export‑grade contracts. You get clean, reliable cuts without visible errors.

Can the 8102X-01 handle both small and large format tiles?

Yes. The 8102X-01 is designed for standard to large tiles commonly used in floor and wall installations. The combination of a self‑resetting handle, linear guide rail, and sturdy frame allows it to work efficiently with porcelain, ceramic, and similar tile types. Always check the maximum cutting length (1800mm) matches your tile size.
