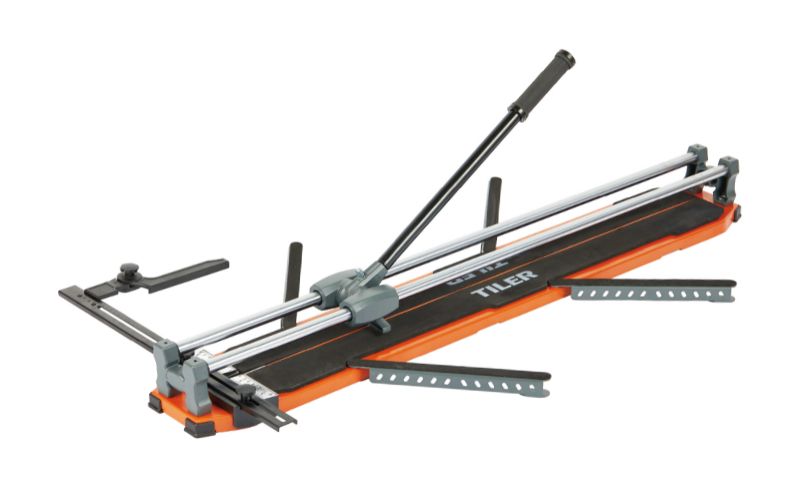

TILER 8100X Manual Tile Cutter | DIY Project Companion | Portable and Easy to Use |B2B

TILER 8100X Manual Tile Cutter | DIY Project Companion | Portable and Easy to Use |B2B

TILER 8100X Manual Tile Cutter | DIY Project Companion | Portable and Easy to Use |B2B
TILER 8100X Manual Tile Cutter | DIY Project Companion | Portable and Easy to Use |B2BTILER 8100X Manual Tile Cutter | DIY Project Companion | Portable and Easy to Use |B2BTILER 8100X Manual Tile Cutter | DIY Project Companion | Portable and Easy to Use |B2B
CategoriesManual Tile Cutters
BrandTILER tile cutting and laying tools distrubutor
Model8100X
MaterialSteel and Alloy Steel
Cutting Wheel MaterialTungsten Carbide
Cutting Length630mm/800mm/900mm/1000mm
Cutting Thickness4mm to 14mm
Cutting AccuracyWithin 1.0mm
Separator Power800kgs
Cutting Roller Diameter10mm
Download
Update TimeDec 13,2024
Detail Information
◢ SPECIFICATION
ART.
MAX.CUTTING LENGTH
(mm)
MAX.DIAGONAL CUTTING LENGTH(mm)
CUTTING
THICKNESS
(mm)
BREAKING
POWER
(kg)
SIZE OF CUTTING WHEEL
(mm)
QTY/CTN
WEIGHT
(kg)
    LxWxH
(cm)
8100X/630
630
445
4-14
800
10
3
24
81*21*39
8100X/800
800
565
4-14
800
10
2
23
102*22*28
8100X/900
900
635
4-14
800
10
2
25
112*22*28
8100X/1000
1000
705
4-14
800
10
2
27
122*22*28
 DESCRIPTION

TILER Manual Tile Cutter X1 Double Chromed Steel Guides with Anti-rust Treatment, Ball Bearings Inside ,Adjustable Ruler ,Hand Tool  for Precision Cutting Porcelain Ceramic Floor Tiles Manufacturer Wholeasale  【630mm|25inch;800mm|32inch;900mm|36mm;1000mm|40inch 】

▪ Designed for professional installers, ensuring high-quality and precise cutting results every time.

▪ Capable of making both straight cuts and angled cuts (up to 60 degrees), providing versatility for various tile installation projects.

▪ Available in multiple cutting lengths (630mm, 800mm, 900mm, 1000mm) and diagonal cutting lengths (445mm, 565mm, 635mm, 705mm), accommodating different tile sizes.

▪ Equipped with a powerful separator (800kgs), ensuring clean and accurate cuts every time.

▪ Offers high accuracy (within 1.0mm), ensuring consistent and precise cuts every time.

▪ Capable of cutting tiles as thin as 4mm and as thick as 14mm, providing flexibility for various tile installation projects.

▪ Made of high-quality steel and alloy steel, ensuring durability and longevity.

▪ Equipped with a 20mm high-precision fine grinding double guide rail and extended slide part with built-in roller bearings, providing smooth and stable cuts.

▪ Features a 22mm cutting roller (cutter), ensuring clean and precise cuts every time.

▪ Equipped with an anti-slip and shockproof pad on the base and an extended handle for added safety and ease of use.
▪ Manual Tile Cutter 8100X Double Rails ▪
As a distributor, you can trust our cutting machine to provide your customers with the best results every time. With its versatility, durability, and precision, our cutting machine is theultimate tool for any tile installation project. Invest in our cutting machine today and take your tile installation business to the next level.
➣ Order now and stay ahead of the competition!
 MODELS FOR T2
8100X/630 ▪

Types:straight cut,angle cut(0°-60°)
Accuracy:within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:14mm
Base material:steel
Guide rail material:alloy steel
20mm High-precision fine grinding double guide rail
Extended slide part with built-in roller bearings for infinite smoothness
Cutting roller (cutter):22mm

8100X/800 ▪

Types:straight cut,angle cut(0°-60°)
Accuracy:within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:14mm
Base material:steel
Guide rail material:alloy steel
20mm High-precision fine grinding double guide rail
Extended slide part with built-in roller bearings for infinite smoothness
Cutting roller (cutter):22mm
8100X/900 ▪

Types:straight cut,angle cut(0°-60°)
Accuracy:within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:14mm
Base material:steel
Guide rail material:alloy steel
20mm High-precision fine grinding double guide rail
Extended slide part with built-in roller bearings for infinite smoothness
Cutting roller (cutter):22mm
8100X/1000 ▪

Types:straight cut,angle cut(0°-60°)
Accuracy:within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:14mm
Base material:steel
Guide rail material:alloy steel
20mm High-precision fine grinding double guide rail
Extended slide part with built-in roller bearings for infinite smoothness
Cutting roller (cutter):22mm
◢FAQ
What is the maximum tile thickness that this tile cutter can cut?
This tile cutter can cut tiles as thin as 4mm and as thick as 14mm, providing flexibility for various tile installation projects.
 Can this tile cutter make angled cuts?
Yes, this tile cutter is capable of making angled cuts up to 60 degrees, providing versatility for various tile installation projects.
 What sizes of tiles can this tile cutter accommodate?
This tile cutter is available in multiple cutting lengths and diagonal cutting lengths, accommodating different tile sizes. The cutting lengths include 630mm, 800mm, 900mm, and 1000mm.
What is the accuracy of this tile cutter?
This tile cutter offers high accuracy within 1.0mm, ensuring consistent and precise cuts every time.
What materials is this tile cutter made of?
This tile cutter is made of high-quality steel and alloy steel, ensuring durability and longevity.
 Is this tile cutter easy to use?
Yes, this tile cutter is designed for professional installers, ensuring high-quality and precise cutting results every time. It is equipped with features such as a powerful separator, anti-slip and shockproof pad, and an extended handle for added safety and ease of use.
