Part One: Tile Joint Spacing Design — Why It Matters
Four Critical Functions of Tile Joint Spacing
① Thermal Expansion
All materials expand and contract with temperature changes. Without adequate spacing, tiles will crack, lift, or "tent" — especially with underfloor heating or outdoor installations.
② Dimensional Variation
No tile is perfectly identical. Even rectified tiles have manufacturing tolerances. Proper spacing absorbs small size differences so they're not visually noticeable.
③ Structural Integrity
Grout fills the joints, locking tiles together as a unified surface. Joint width directly determines how well grout performs both structurally and as a waterproof barrier.
④ Visual Rhythm
Narrow joints create a seamless, monolithic look. Wider joints create a grid pattern that emphasizes each individual tile — choose based on your design intent.
Key Factors That Determine Joint Width
1. Tile Type and Rectification
| Tile Type | Rectification | Min. Joint | Notes |
|---|---|---|---|
| Rectified porcelain | Precision ±0.5mm | 1–2mm | Near-seamless look achievable |
| Standard ceramic | Not rectified | 2–3mm | Needs wider joint for size variation |
| Natural stone (marble) | Calibrated | 3mm | Prevents lippage from natural variation |
| Natural stone (slate) | Uncalibrated | 3–5mm | Must account for significant size differences |
| Glass / mosaic | Precision | 2mm | Standard for small format tiles |
2. Tile Size
Rule of Thumb
Larger tiles need wider joints — not just for looks, but because they're more susceptible to substrate movement.
- Small (<300mm): 2–3mm
- Medium (300–600mm): 3mm
- Large-format (600–900mm+): 3–5mm
- Extra-large (900mm+): 3–5mm or more
Why Larger = Wider
Bigger tiles have less flexibility to absorb substrate stress. Wider joints give the tiled surface room to move without cracking.
3. Installation Environment
| Environment | Key Concern | Recommended Joint |
|---|---|---|
| Interior wall | Aesthetics | 1.5–3mm |
| Interior floor | Foot traffic + slight movement | 3mm |
| Underfloor heating | Thermal expansion | 3mm minimum |
| Outdoor / exterior | Weather, freeze-thaw cycles | 5–10mm |
| Shower floor | Waterproofing, drainage | 3–4mm |
| Swimming pool | Water pressure, expansion | 5–8mm |
| Commercial kitchen | Heavy traffic, cleaning | 3–5mm |
4. Grout Type
Unsanded Grout
Joints up to 3mm
Smaller joints don't need sand for strength; unsanded grout flows into narrow gaps cleanly.
Sanded Grout
Joints 3–6mm
Sand prevents cracking in wider joints. Standard for most floor installations.
Epoxy Grout
Joints 1–10mm
Flexible, waterproof, and stain-resistant. Works across the full width range.
Industry Standards & Best Practices
Tile Council of North America (TCNA)
TCNA Handbook for Ceramic Tile Installation
- Floor tiles over radiant heating: min 3mm
- Exterior installations: min 3mm
- Shower floors: min 3–4mm
- GPP panels >900mm: min 3mm
European Standard EN 14411
Ceramic Tiles — Definitions, Classification, Characteristics
Joint width should be at least 3× the maximum allowable dimensional tolerance of the tile.
Part Two: Tile Spacers — Your Tools for Perfect Joint Design
Tile Spacer Sizes & When to Use Each
| Size | Best For | Joint Design Goal |
|---|---|---|
| 1mm | Rectified porcelain, calibrated stone | Near-invisible, seamless monolithic look |
| 1.5mm | Rectified tiles, precision commercial | Very tight, contemporary minimalist |
| 2mm | Standard wall tiles, subway tile | Clean, modern wall standard |
| 3mm | Standard floor, large-format tiles | Professional floor standard |
| 5mm | Outdoor, natural stone | Wide joint, accommodates expansion + variation |
| 8–10mm | Heavy-duty commercial, thick stone | Industrial, structural applications |
How to Choose the Right Spacer — 4 Steps
Rectified porcelain → 1–2mm
Natural stone → 3–5mm
Heated floor → min 3mm
Outdoor → min 5mm
Shower → min 3mm
Seamless → 1–1.5mm
Contemporary → 2–3mm
Traditional/rustic → 3–5mm
Unsanded → up to 3mm
Sanded → 3–6mm
Epoxy → any width
Part Three: Spacer Quantity Calculation

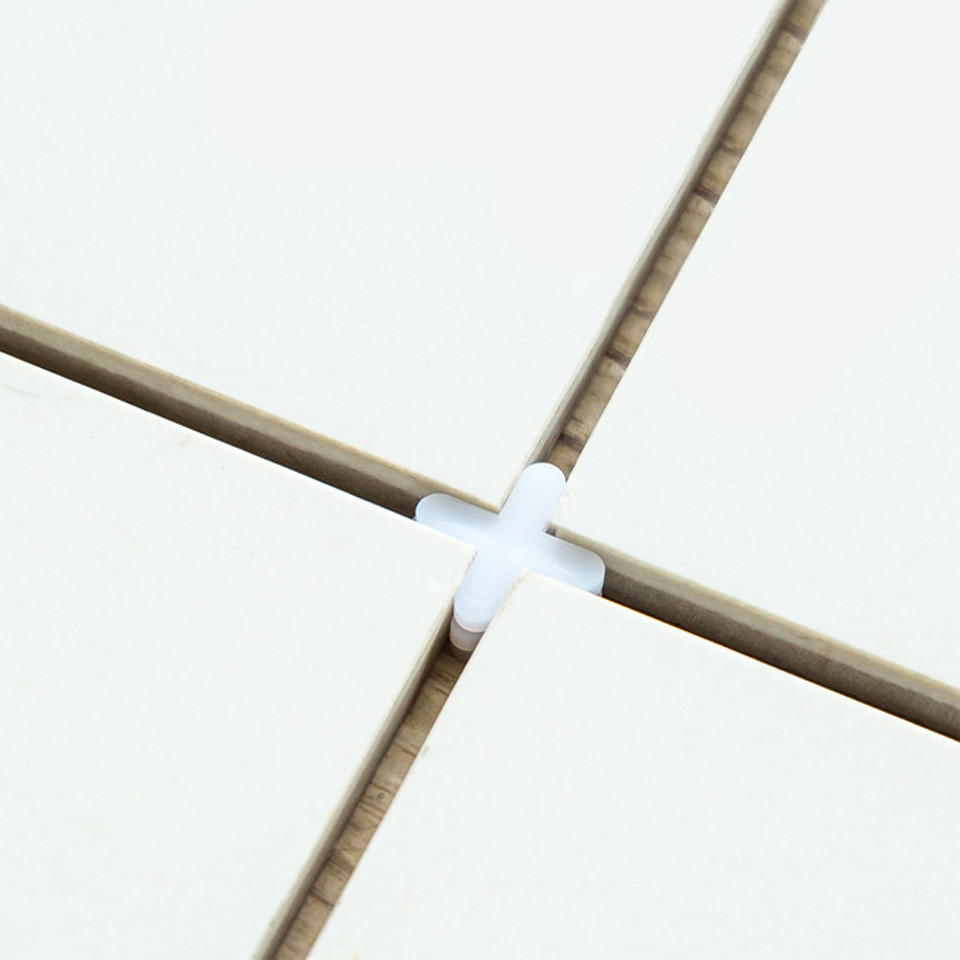

The Basic Formula
4 spacers per tile (one at each corner)
÷ 2 (shared between adjacent tiles)
= 2 spacers per tile
Tile Size Quick Reference
| Tile Size | Tiles/m² | Spacers/m² |
|---|---|---|
| 100×100mm (mosaic) | 100 | 200 |
| 300×300mm | 11.1 | ~22 |
| 600×600mm | 2.78 | ~6 |
| 800×800mm | 1.56 | ~3 |
| 1000×1000mm | 1 | 2 |

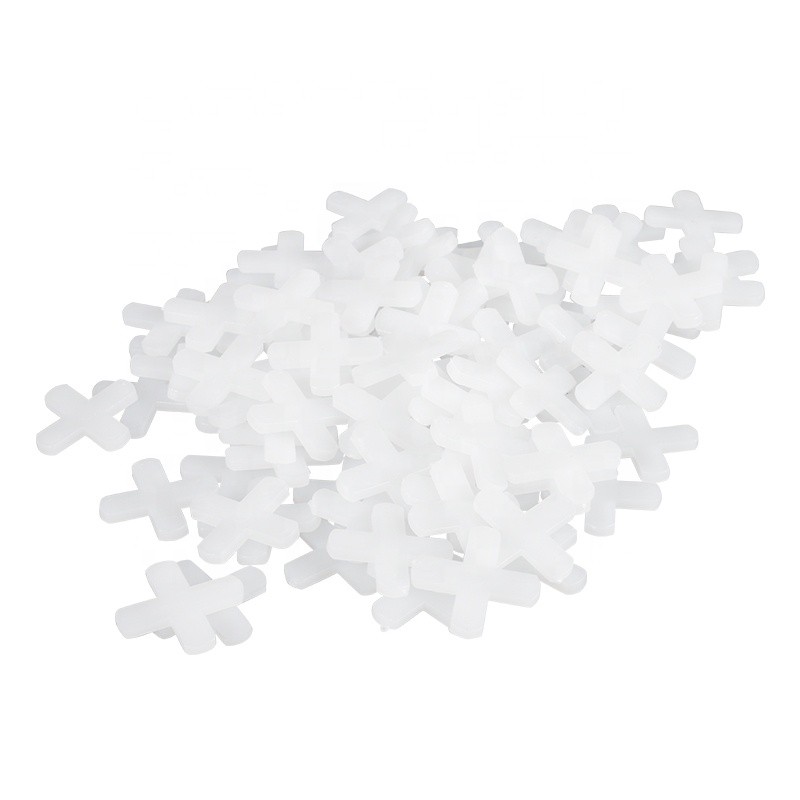

Part Four: Types of Tile Spacers

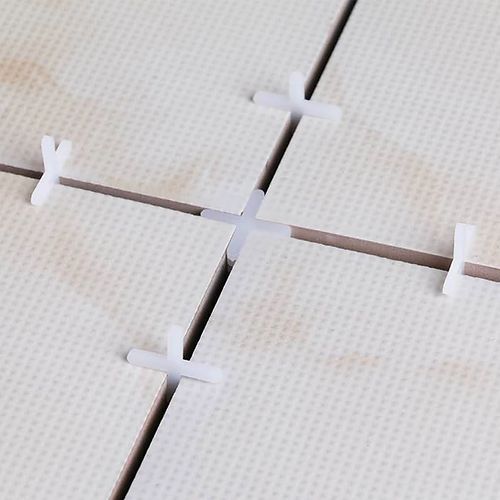

① Standard Cross Spacers
Classic + shape, 4-way spacing at every intersection.
Best for: General floor and wall tile work.
② T-Shape Edge Spacers
T-shape for finishing edges, borders, and perimeter alignment.
Best for: Last rows, perimeter tiles, border work.
③ Leveling Clip + Wedge
Two-piece system — clip goes under tile, wedge tensions between tiles.
Best for: Large-format tiles (600mm+) where lippage is a risk.
④ U-Shape Spacers
Open at one end — slides in from the side.
Best for: Bullnose tiles, steps, decorative borders.
⑤ Leveling Combo Spacers
Spacer and leveling wedge in one unified piece.
Best for: Production-speed installation crews.

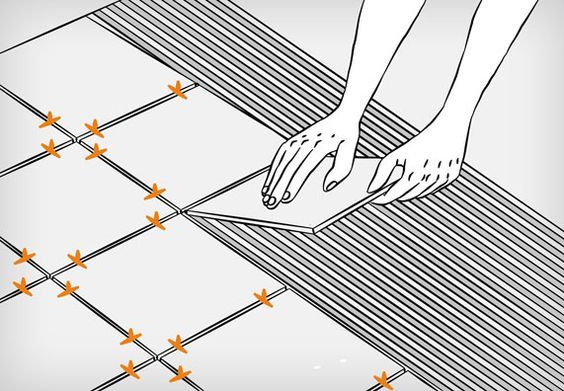

Part Five: Step-by-Step Installation Guide
Remove all spacers before grouting. Embedded spacers prevent grout from filling the joint properly, weakening both the seal and the bond.
Part Six: 5 Pro Tips for Professional Results Every Time
TILER Tile Spacers & Leveling Systems
Professional-grade installation accessories for every joint design application — trusted by tile trades in 140+ countries.
Browse TILER Accessories →Tile Spacers
1mm · 1.5mm · 2mm · 3mm · 5mm
Bulk packs for professionals. Consistent sizing, break-resistant polymer.
Leveling System
Clips + Wedges
Zero-lippage installation for large-format tiles. Reusable wedges.
Installation Tools
Spacer Pliers · Leveling Gun
Efficient spacer extraction and production-speed tensioning.
Summary
| Topic | Key Takeaway |
|---|---|
| Joint width | Determined by tile type, environment, and visual goal |
| Spacer size | Must match your chosen joint width exactly |
| Quantity | ~2 spacers per tile; add 10–15% for waste |
| Leveling system | Essential for tiles over 600×600mm |
| Removal timing | 2–3 hours (standard); 24 hours (leveling clips) |
| Perimeter gap | 5–10mm around walls and fixed objects |
Joint design + spacers = the difference between professional and amateur tile work.
TILER — Professional Tools for Professional Results.
30 years serving tile professionals in 140+ countries.
Sources & References
The following sources informed the standards and technical guidance cited in this article. For the most accurate and up-to-date requirements, always consult the latest editions directly.
- Tile Council of North America (TCNA) — TCNA Handbook for Ceramic Tile Installation, current edition. www.tcnatile.com
Joint width requirements for radiant heated floors, exterior installations, shower floors, and GPP panels. - European Committee for Standardization (CEN) — EN 14411:2016, Ceramic Tiles — Definitions, Classification, Characteristics and Marking. Available via national standards bodies (BSI, DIN, AFNOR).
Dimensional tolerances and minimum joint width guidance. - Bostik, Mapei, Laticrete — Technical data sheets and tile installation guides. Available at respective manufacturer websites.
Grout type selection by joint width: unsanded, sanded, and epoxy grout application ranges. - Raimondi SpA, Tiloclip, Spin Doctor — Tile leveling system installation guides.
Standard spacer removal timing: 2–3 hours (portland cement adhesive); leveling clip wedge removal: 24 hours after setting.
